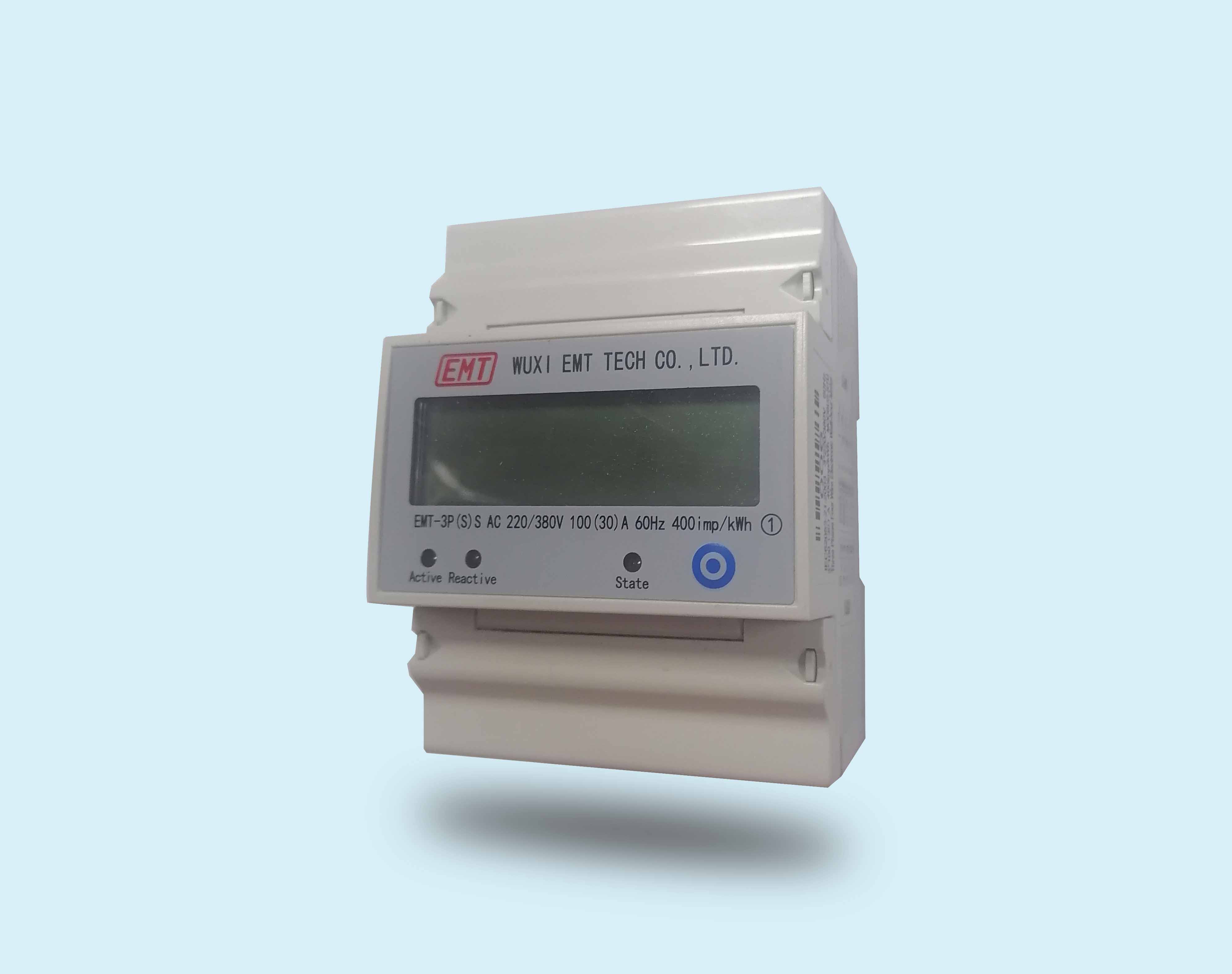

EMT-3P(S)S

Product introduction

EMT-3P (S) S three-phase electronic watt hour meters are used for power supply enterprises, factories, enterprises, lighting facilities, and commercial and agricultural activities. The meter adopts international famous brand large integrated circuit, 16 bit A/D converter, digital multiplier, digital sampling processing technology and SMT technology, and a new type of electric energy meter is designed and developed according to the actual situation of industrial power users. The instrument is applicable to three-phase active electric energy with a frequency of 50/60 HZ. The instrument is an advanced and reliable measuring equipment with LCD display, IR and RS485 communication.

Product performance and parameters

1）Specifications

TYPE

CLASS

RATED OLTAGE

STANDARD
CURRENT

Three Phase
Three Wire

 1.0 class
 2.0 class

3×100V

3×6(1.5)A

3×380V

3×6(1.5)A

Three Phase
 Four Wire

3×57.7/100V

3×6(1.5)A

3×220/380V

3×6(1.5)A

3×10(2.5)A

3×20(5)A

3×60(10)A
3×60(15)A

3×80(20)A
3×100(30)A

2）Starting

 When the rated voltage, rated frequency and power factor is 1.0, the loaded current is 0.004Ib(class1)、0.005Ib(class2), the meter shall starts and measures energy continuously.

3） Creeping

 When the voltage circuit is loaded with a voltage 1.15 times of the rated voltage and there is no current in the current circuit, the meter is supposed not to output more than one pulse.

4） Working Voltage Range

Normal Working Voltage:0.9Un～1.1Un

Working Voltage Limit:0.0Un～1.15Un

5） Power Loss

 Power loss of the voltage line in each phase≤2W/10VA

 Power loss of the current line in each phase≤4.0VA

6） Environment condition

 standard working temperature：-10℃～+45℃,

 working temperature limit：-25℃～+55℃

 Storage and transport temperature limit：-25℃～+70℃

 Relative humidity: annual average≤75%

7） Safety Performance

 The product meets each safety index and requirement stipulated in GB/T 17215-2008
