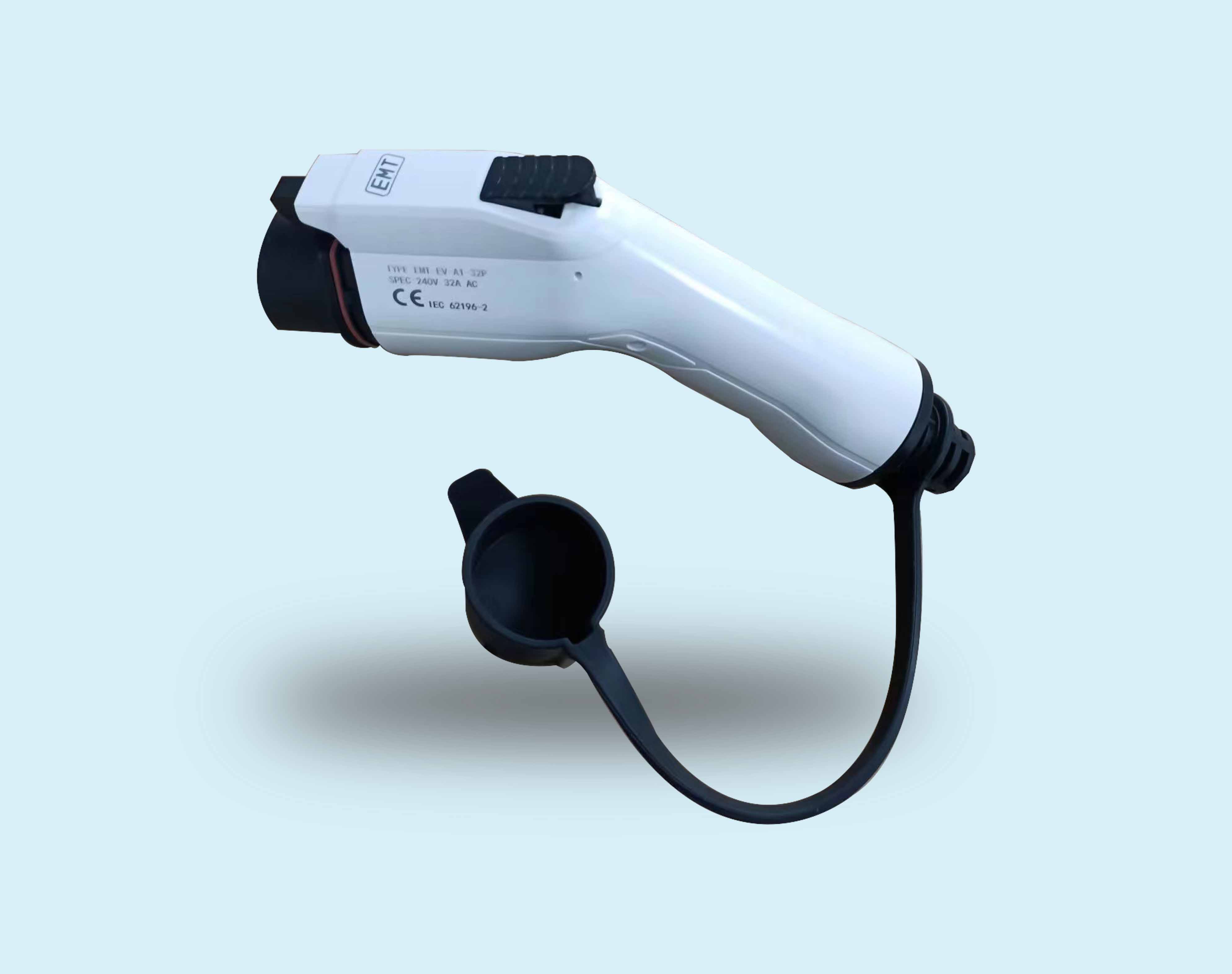

Charge pile plug

Product introduction

Our charging pile plug has a simple and generous appearance, stable frame design, complete functional configuration, and the length of the line is mainly 5m/6m/7m. The length of the line can also be customized. The modular design is convenient for long-term maintenance of the equipment. It is an AC charging equipment that provides power for new energy vehicles with on-board AC chargers.

Product performance and parameters

Product features

1. Comply with the provisions and requirements of GB/T20234.2-2015

2. Beautiful appearance, the hand-held design conforms to ergonomic principles, and it is convenient to plug and unplug

3. The contact pin head is designed with safety insulation to prevent accidental direct contact

4. Superior protection performance, with protection level reaching IP55 (working state)

Mechanical properties

1. Mechanical life: no-load plugging ＞ 10000 times

2. Plugging force during coupling: ＞ 45N ＜ 80N

Electrical performance

1. Rated working current: 16A or 32A

2. Working voltage: 250V

3. Insulation resistance: ＞ 1000M Ω (DC500V)

4. Terminal temperature rise: ＜ 50K

5. Withstand voltage: 2000V

6. Contact impedance: 0.5m Ω Max

Material application

1. Shell material: thermoplastic, flame retardant grade UL94V-0

2. Pin: copper alloy, silver plated surface+thermoplastic top

Ambient temperature

Working environment temperature: - 30 ℃~+50 ℃
