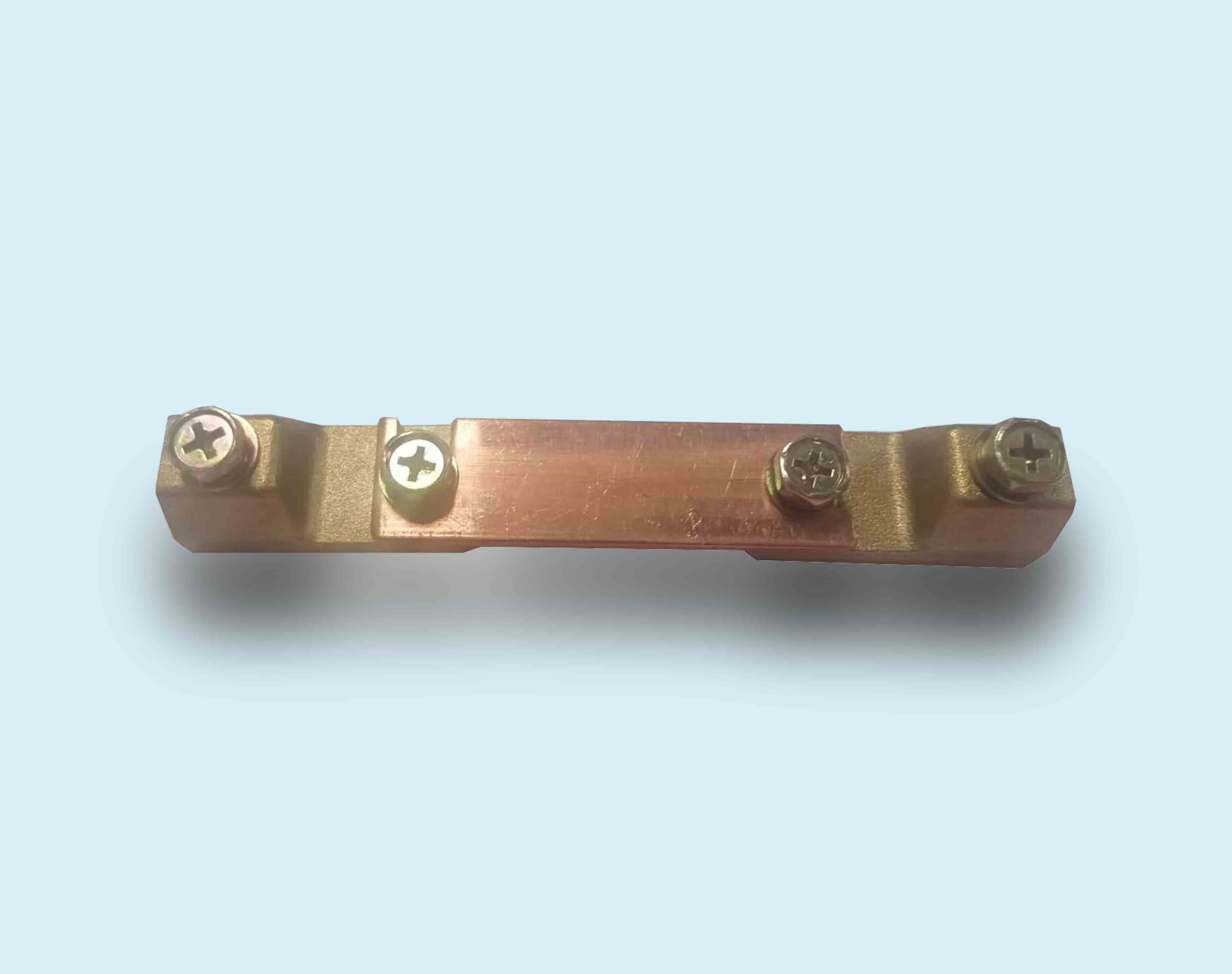

Grounding terminal

Product introduction

The terminal connected with the grounding body is the grounding terminal. The material depends on the material of the wire. Most of them are copper, but there are also copper aluminum transition terminals. It is mainly cast with pure copper or anti-corrosion stainless steel and directly poured into cable trough or other concrete products, which are widely used in the fields of petroleum, electrified high-speed railway, substation, etc. The purity of the material shall be more than 98% when casting with copper according to IEC 62305-3.

Product performance and parameters

Project

Performance description

Material

Generally, pure copper or anti-corrosion stainless steel is cast and directly poured into the cable trough or other concrete products. When copper casting is adopted according to IEC 62305-3, the material purity shall be above 98%. When stainless steel casting is adopted, the material shall meet Cr ≥ 17%, Ni ≥ 8%, Mo ≥ 2%, C ≤ 0.06%.

Purpose

Grounding terminals are widely used in electrified high-speed railway, substation, petrochemical, data center and other fields

Remarks

Customizable
