Modular

Product introduction

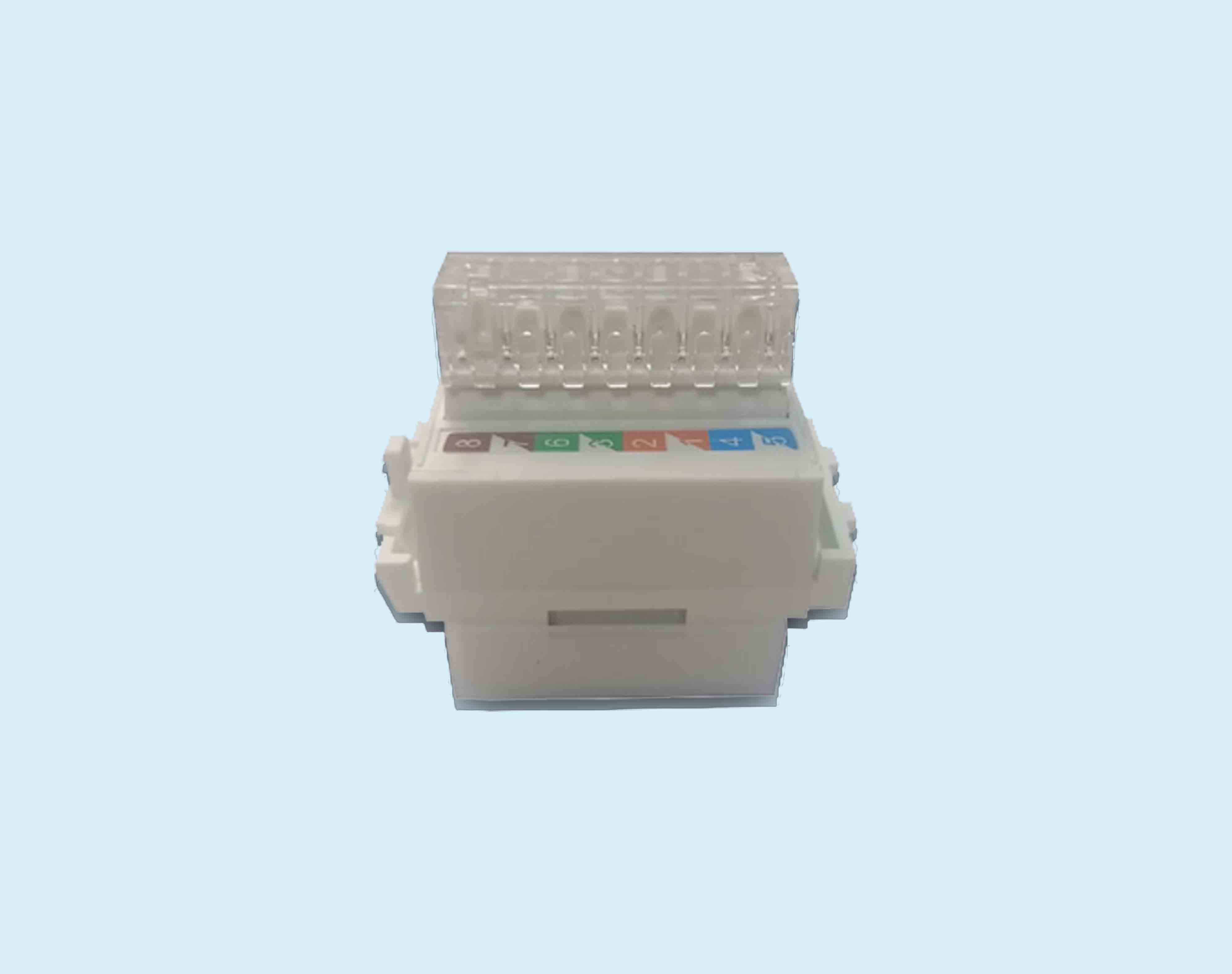

It refers to the front and rear connectors connected to the network cable or telephone cable, usually used with the panel or distribution frame! The product can be divided into 90 ° and 180 °. 90 ° refers to 90 ° horizontal between the terminal and the 8-core pin, and 180 ° refers to 180 ° horizontal between the IDC wiring column and the 8-core pin. It can also be divided into shielded and unshielded

Product performance and parameters

project

Performance description

Product material

Copper sheet, environment-friendly flame retardant PC compound

Applicable system

Super Class V unshielded system

Executive standards

ANSI/TIA 568 C2，ISO/IEC 11801-2017

Applicable cable

24AWG(0.45mm-0.51mm)

Process characteristics

Curved pin design, nickel plated connector, gold plated spring

Unplug times

≥1000次

Number of terminations

≥100次

Operating temperature

125（1.2×50㎲）

Marking method

Compatible with 568A and 568B wiring standards

Port requirements

RJ45 plug

Quality inspection requirements

Pass FLUKE 90m test

Product certification

Certification of Product Quality Supervision and Inspection Center
